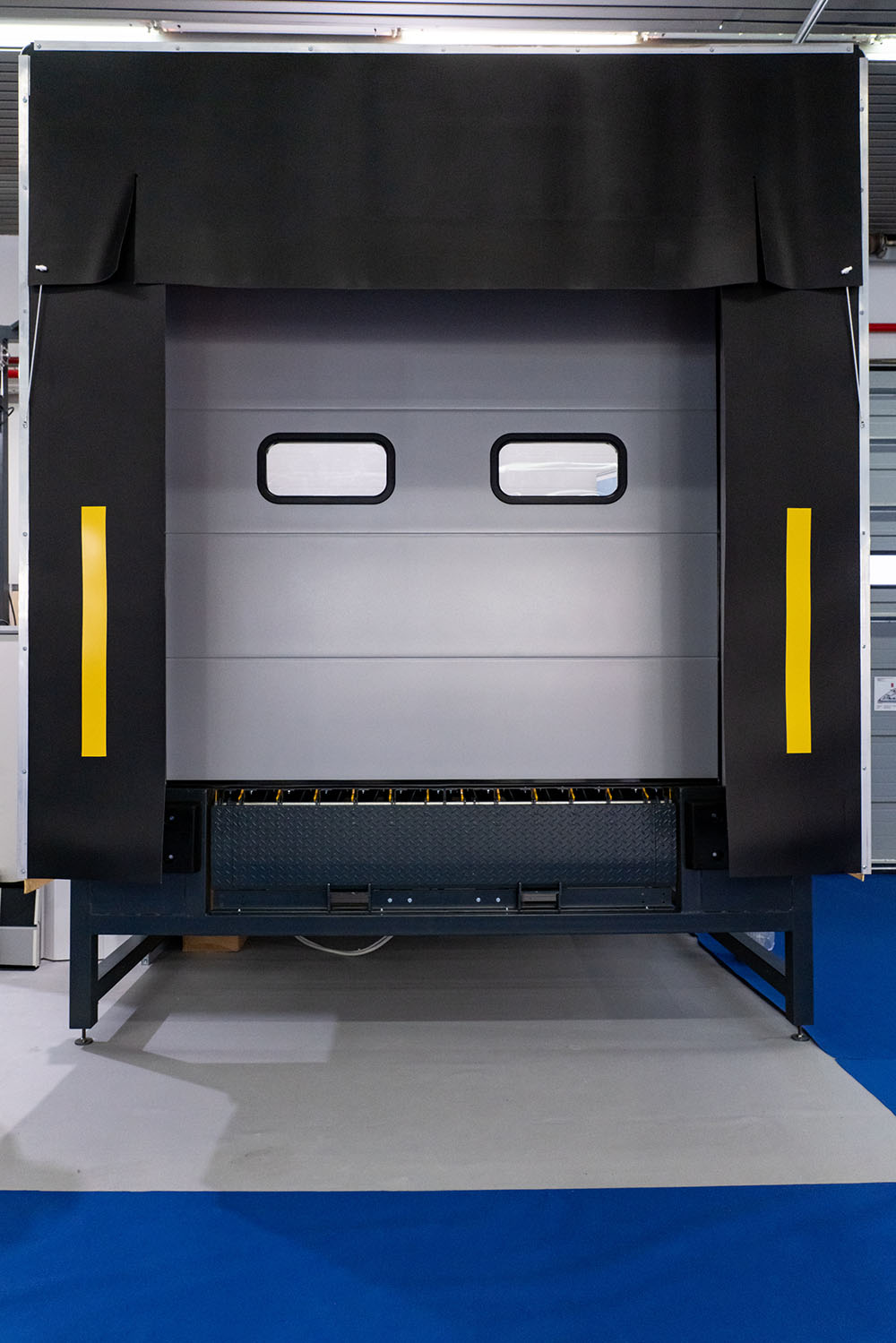

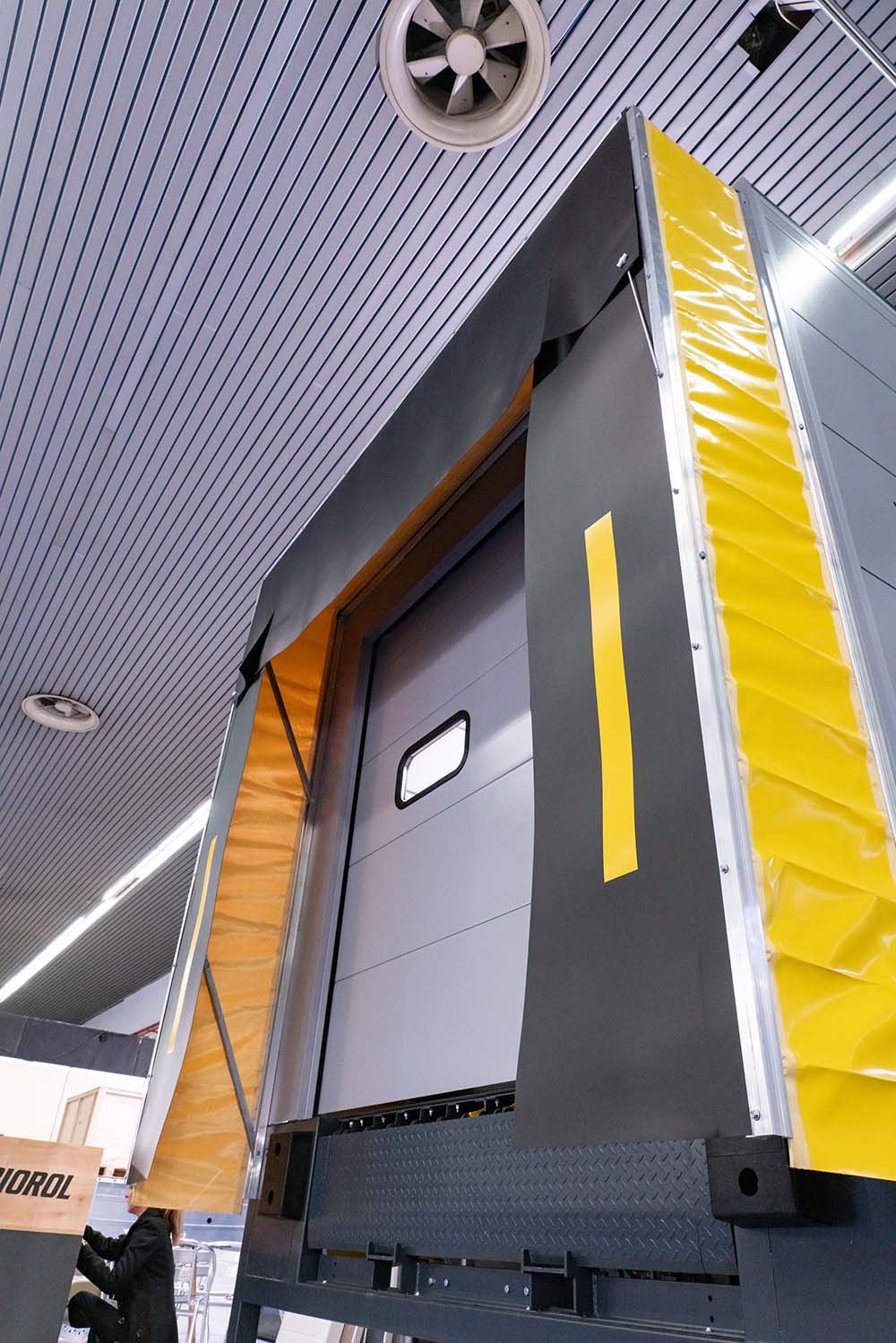

PVC Retractable Isothermal Frame

Retractable dock shelters with side self-extinguishing PVC curtain and front panels in double frame PVC for an innovatively strong structure, easier to mount and assemble (see user manual) thanks to side curves for easy side PVC inserting in rails.

Description and Applications

The thermal insulation frame is a foldable dock shelter featuring an innovative loadbearing structure made of extruded aluminum, lightweight yet durable, allowing for easy assembly and installation.

It is equipped with a perimeter covering made of reinforced PVC, with self-extinguishing properties and resistance to tearing and scratching, as well as front and side flaps made of double-weave PVC, designed to offer insulating protection and durability.

The system provides effective sealing between the truck and the warehouse, ensuring the continuity of the cold chain, and is ideal for:

• Food Industry
• Pharmaceutical Industry
• Chemical Industry
• Refrigerated Warehouses

Technical Specifications

NOMINAL WIDTH: 3460mm
NOMINAL LENGTH: 600 mm
NOMINAL HEIGHT: 3400mm

UPPER FRONT PANEL: Double frame PVC 3mm thick,
H1000mm – black colour
SIDE FRONT PANEL: Double frame PVC 3mm thick,
L600mm – black colour

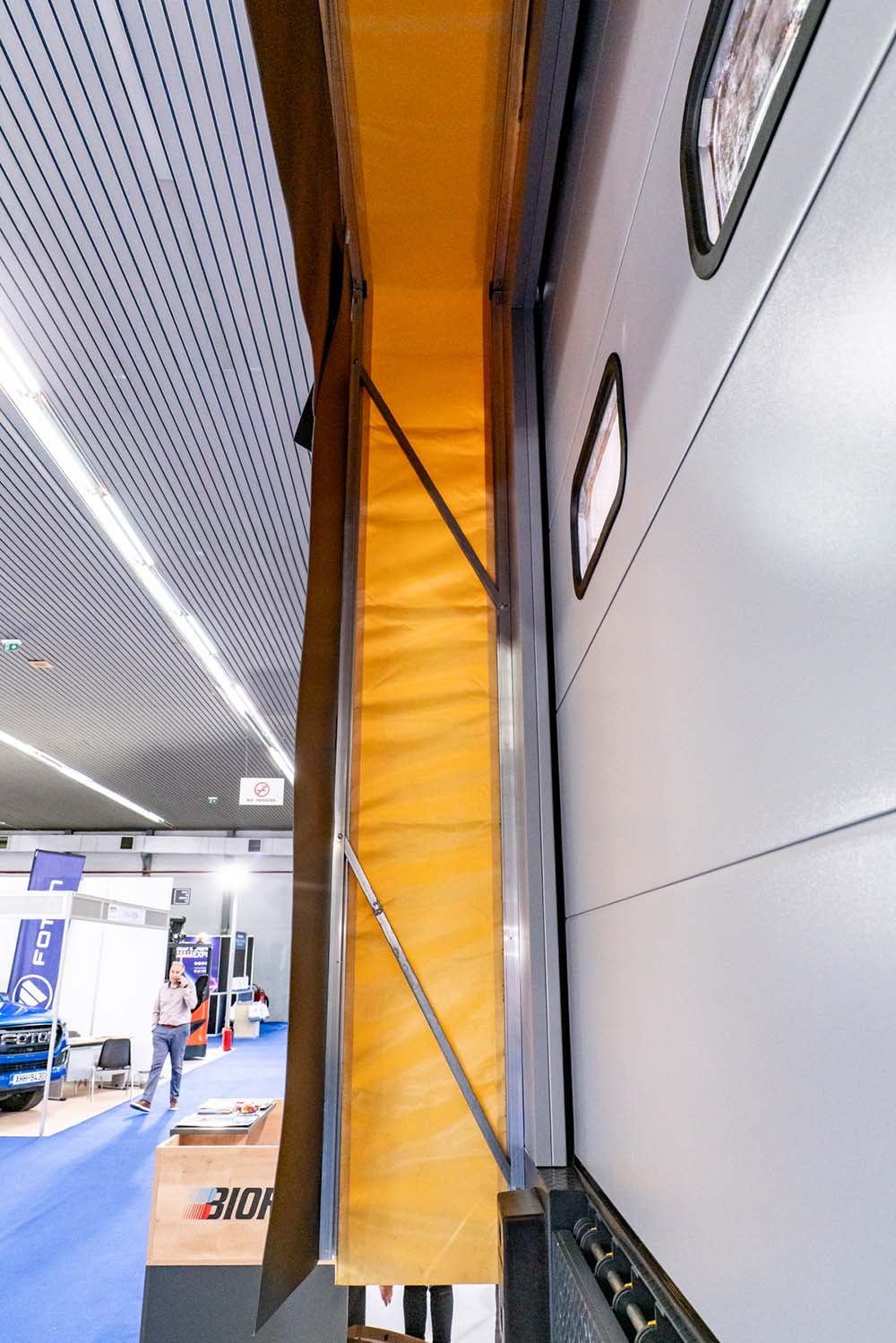

SIDE CURTAIN: Anti-scratch, self-extinguishing, 600g/m2 KEDER reinforced PVC, yellow colour

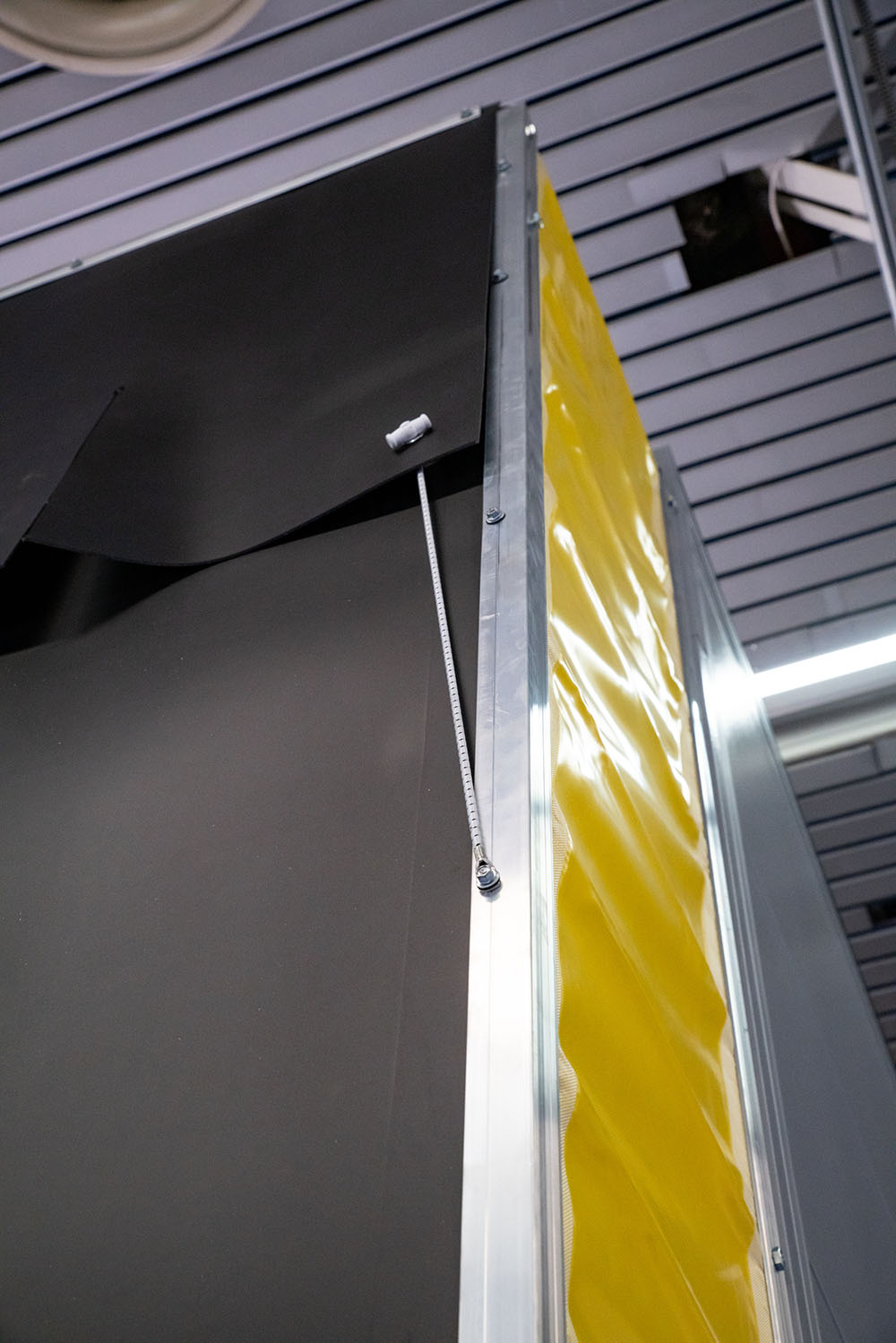

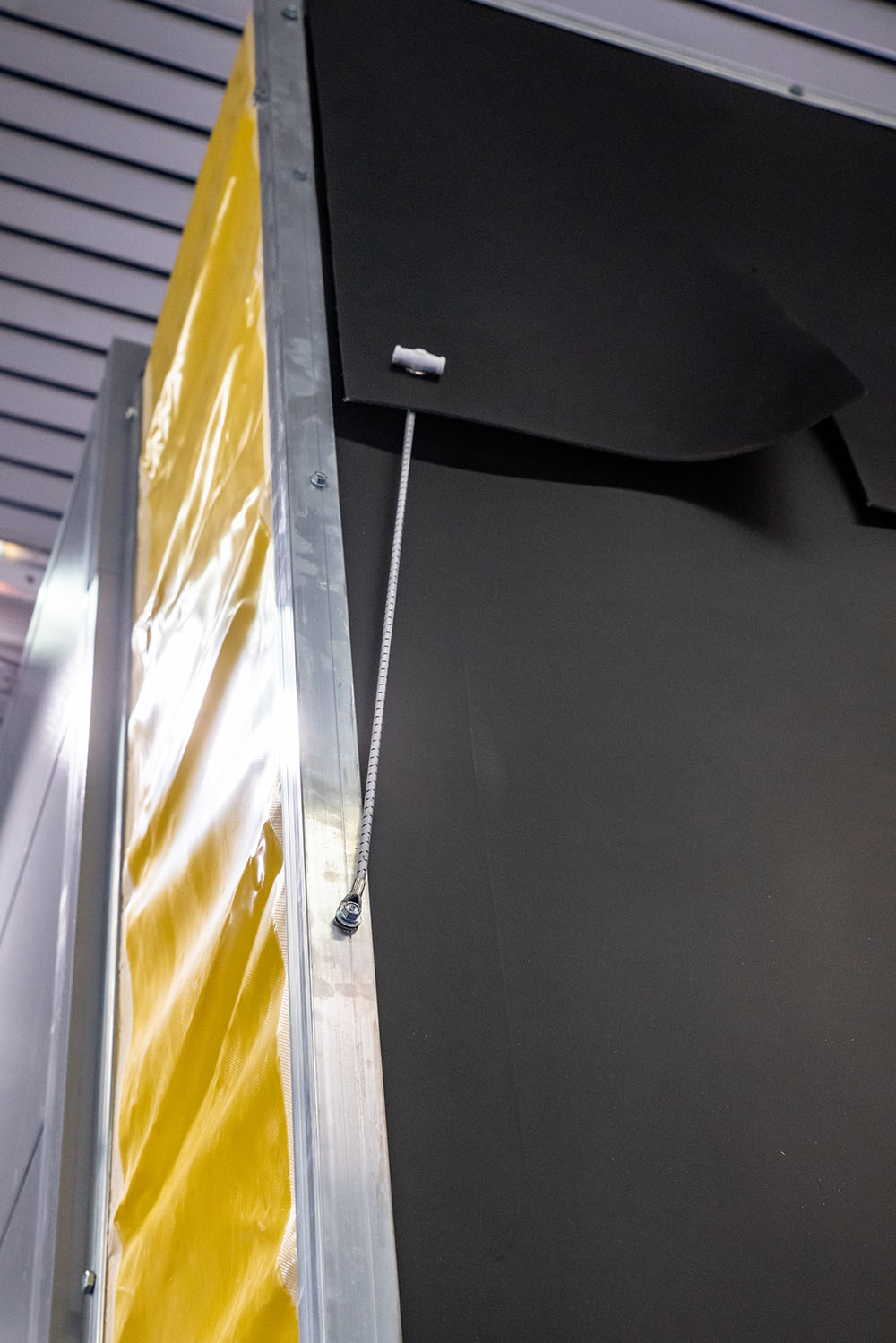

INSTALLATION: Extruded and pre-perforated aluminum profile prepared for wall mounting
